Circular Queue Data Structure

Circular Queue

Circular queue is a modified form of queue in which the front and rear pointers move circularly.
Instead of starting from -1, now front and rear start from 0.

Representation of circular queue:

circular queue

class Queue{
   int arr[50]
   int front, rear;
   int size;
};

  Queue(int n)
    {
    front = 0;
    rear  = 0;
    size =n;
    }

Operations

To make front and rear move circularly, after rear reaches (size-1 ) position, it must be reset to 0.
To do this, '%' is used.
Working of mod operator can be seen:
Let size = 5.
| Rear = | (Rear+1)%size |
|:–:|:–:|
| 0 | (0+1)%7 = 1 |
| 1 | (1+1)%7 =2|
| 2 | (2+1)%7 =3|
| : | : |
| 4 | (4+1)%5 =0 |

Hence when rear points to (size-1), it gets reset to 0.

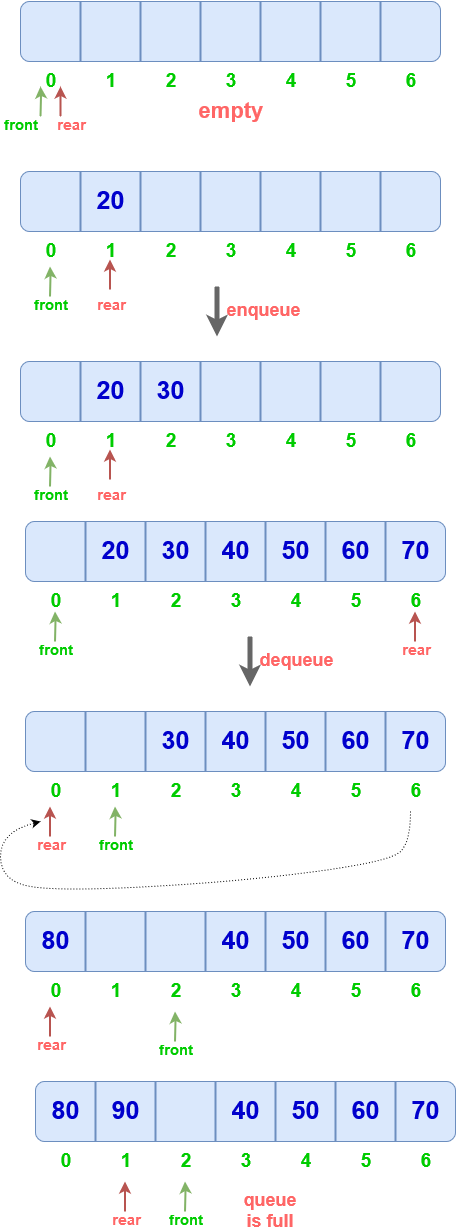

Working of circular queue :

working of circular queue

Enqueue

  • Elements are inserted from the rear end as usual.
  • If rear reaches (size-1), it is reset to zero
  • Insertion can't be done at the index where front is pointing

Only (size-1) spaces can be utilized in Circular queue.

void enqueue(int x)
 {
     if((rear+1)%size == front)
          print("Queue is Full");
     else
    {
     rear=(rear+1)%size;
     arr[rear]=x;
    }
}

Dequeue

int dequeue()
 {
  int x=-1;
if(front==rear)
      print("Queue is Empty")
else
    {
       front=(front+1)%size;
        x=arr[front];
   }
   return x;
   }

Display

void Display()
{    int i= front+1;
     do
     {
       print(arr[i]);
       i=(i+1)%size;
     }while(i!=(rear+1)%size);
}

Complexity for all operations on circular queue is O(1).
